This is turned to the final taper required for this section. The cross slide is attached to it so as the cross slide moves along the bed of the lathe it moves in or out so cutting a taper on the workpiece. Each group of workpiece materials has an optimum set of tools angles which have been developed through the years.

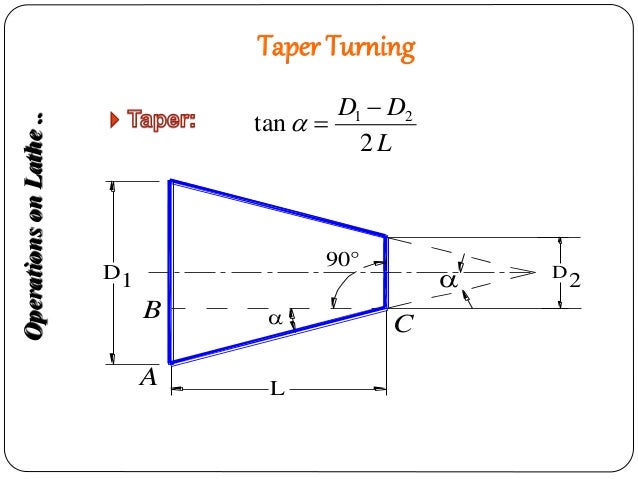

Turning tapers on a lathe
Though it might appear that the angle is not critical the diameter at the top of the column and the diameter at the bottom will only be right if the angle is right. If a bearing that will be used is fitted to the spindle after the outside of it has been turned then this can be used for holding the spindle when the taper is being bored. These can be very long and yet quite thin. The principle of this compound slide is that axis of work piece rotates parallel to the axis of bed and the cutting tool moves at the desired angles.
Can use on external and internal. In such cases we can find out the number of mm divisions by the formula. It is fiddly work and takes some practice.
The steady is fitted on the workpiece at the required spot and clamped in place. They can also be made by using a special drill.
For example if it is necessary to drill the end of a thin taper, for example, a stanchion, trixbox configuration guide pdf a stead can be made by drilling a hole in a thin piece of steel that be held in a quickchange toolholder. Naturally it then becomes essential that there are standards for the sizes of tapers. Taper attachment Best method to use. Home Taper turning attachment Methods of Taper Turning.
The tool is fitted as described above. The guide bar should be set parallel with the taper on, which the tool is applied.
Not belong to standard lathe accessories Any size or length can be tapered. Another common taper is the International taper.
Often this means that for a given length of taper the workpiece will have to be longer than the final part so it can be held. The arms of the fixed steady are adjusted so they just touch the workpiece. One might have assumed that the angle on each size of Morse taper would be the same.
Field and maintenance shops generally use a lathe that can be adapted to many operations and that is not too large to be moved from one work site to another. This MiniLathe taper attachment is shown here from the user's perspective.
Of course the male and female tapers must be the same size to work properly. This does mean that the workpiece has to fit inside the spindle. Or, a boring head mounted in the tailstock may be used to provide the offset. It has the benefits that no special equipment is needed and very long tapers can be produced. Regardless of the size, pins used the same angle of taper for the whole range.
Because of these features tapers are used extensively in engineering. Some tapers that are ornamental might also be fluted. Must work between centers. When copying a Morse taper it is essential that the size of the taper being copied is the same size as that being made.
Or a simple gadget may be made that mounts in the tailstock chuck which allows offsetting a ball center. It would be a bit optimistic to think this will work on the first try. These centers do not point at each other as they should and so compromise accuracy. On the oboe it is conical. Here is a view after adding struts to stiffen the attach scheme.
In this method both longitudinal and cross feed can be used. The angle can be set using slip gauges.
Disadvantages of Tail Stock Method. Mike Cox took a slightly different approach to make a removable taper attachment. The snags are more numerous. The ball cutter was used to put the rounded section on the top of the fancy nuts and also to make balls for the handles, of course. Need to buy the taper attachment.

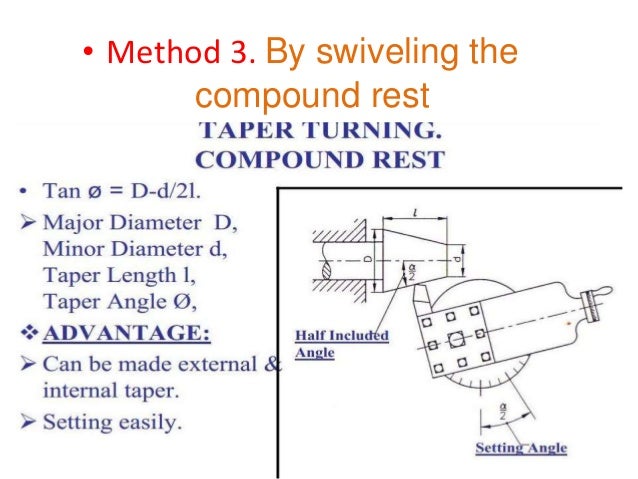

Taper Turning by Swivelling the Compound Slide. On this sort of taper turning device it is essential that when it is not being used the coupling rod is completely disconnected. Methods of Cutting a Taper Compound rest method Tailstock offsetting method Taper attachment method Using formed tool method. Intended Learning Outcomes Compare and contrast the different methods of turning process. Advantages of Tail Stock Method.
Set the pointer to touch the side of the center. In the case of female sockets it is always possible to drill out the socket using a drill of the width of the narrow end of the taper.
Very thin tapers can be supported by means of a steady. The various angles, shapes, and sizes of a single-point cutting tool have direct relation to the resulting surface of a workpiece in machining operations. It is impractical to use the edge of a cutter as a form tool. Often the taper to be made has to fit an existing taper.
Lathe Machine Operations Taper Turning lifelarn
By combining longitudinal and cross feed in a special lathe. Knurls should always be chamfered at both end. Turret lathes and special purpose lathes are usually used in production or job shops for mass production or specialized parts, while basic engine lathes are usually used for any type of lathe work. To be sure of getting this right is is necessary to be able to measure them.
The angle of the rotating slide is calibrated so it is quite easy to change the angle and make another, different taper on the same workpiece. One is if we look at the taper from above and split it down the middle. In this method the axis of the job rotates with an angle to machine bed axis and the tool moves parallel to the machine bed.
